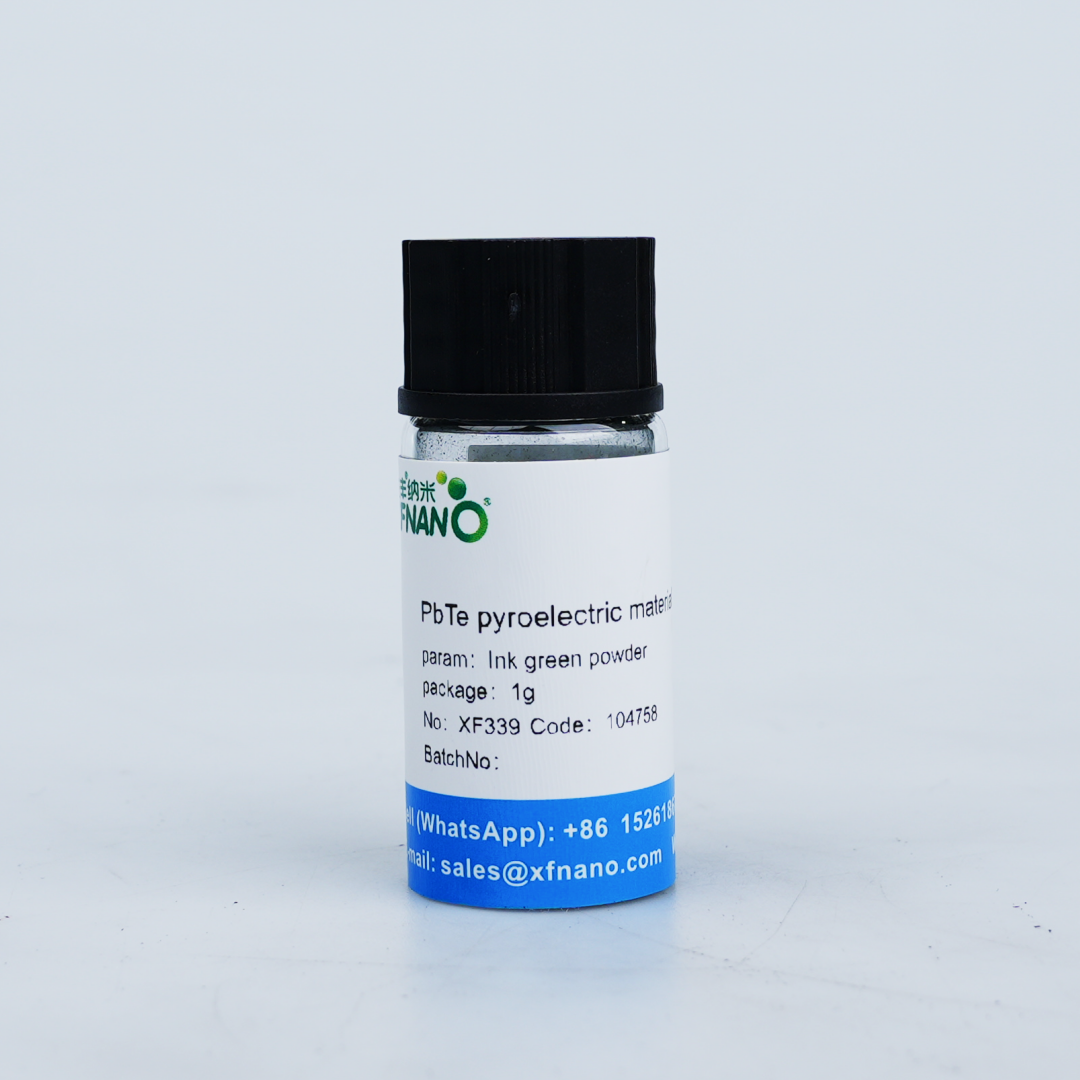

PbTe pyroelectric material

Product Name

^{Name:PbTe pyroelectric material}

Product Overview

^{Thermoelectric materials are functional materials that can convert thermal and electrical energy by utilizing their internal charge carriers and phonons. The effective operation of thermoelectric materials is mainly based on three physical effects, namely the Seebeck Effect (discovered in 1794, referring to the phenomenon of thermal to electrical conversion between two different conductors), the Peltier Effect (discovered in 1834, the phenomenon of electrical to thermal conversion between two different conductors), and the Thomson Effect (discovered in 1851, the phenomenon of heat absorption and release in a single conductor).}

^{The conversion efficiency of thermoelectric materials is determined by the dimensionless parameter - thermoelectric figure of merit ZT, and its calculation formula is:}

^{ZT=σ S2T/k, where σ is the conductivity, S is the Seeback coefficient, which is the inherent electronic transport performance parameter of thermoelectric materials, T is the temperature, and k is the total thermal conductivity. A common method to improve the performance of thermoelectric materials is to introduce multi-scale second phases to regulate the microstructure of thermoelectric materials, thereby changing the band structure and crystal structure of the matrix to coordinate various parameters and optimize their thermoelectric transmission performance.}

^{Traditional inorganic thermoelectric materials are currently a type of thermoelectric material with a wide range of applications and a long research time. Mainly including Mg based thermoelectric materials (Mg2X (X=Si, Sn)), Bi2Te3 based thermoelectric materials, SiGe based thermoelectric materials, PbX (X=S, Se, Te) based thermoelectric materials, SnX (X=S, Se) based thermoelectric materials, GeTe based thermoelectric materials, and oxide based thermoelectric materials.}

^{PbTe based thermoelectric materials are thermoelectric materials in the medium temperature range, exhibiting excellent thermoelectric properties in the temperature range of 300-900K. Its bandgap width is about 0.3 eV, belonging to wide bandgap semiconductors, with a typical NaCl type crystal structure, highly symmetrical crystal structure, and high conductivity. At the same time, its band structure is also relatively complex, and the strong non harmonic vibration caused by local eccentricity of Pb atoms makes PbTe have low thermal conductivity while having a high Seebeck coefficient.}

^{Technical Parameter}

^{Thickness: 50-300 nm}

^{Appearance: Grey black powder}

^{Main ingredient: Bi0.4Sb1.6Te3}

^{Semiconductor type: P-type}

^{Product Features}

^{1. It has a high carrier mobility, which is beneficial for improving conductivity.}

^{2. It exhibits good thermoelectric performance in the medium to high temperature range of 300-900K.}

^{3. By incorporating elements such as Sb, the electrical and thermal properties are optimized and improved}

^{Application Fields}

^{1. Energy Conversion: A PbTe based thermoelectric material exhaust waste heat recovery device can convert some of the exhaust heat energy into electrical energy and store it for use in vehicle lighting or auxiliary equipment;}

^{2. Temperature difference power generation: It can be made into flexible electronic wearable devices to intelligently detect the temperature difference between the human body and the environment; The power generation device based on PbTe based thermoelectric materials can use temperature difference to supply power to meteorological monitoring equipment.}

^{Related Information}

^{Please e-mail for the detailed characterization data.}
