Product Name

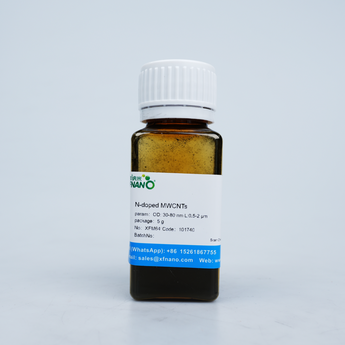

Name：N-doped MWCNTs
Product Overview
Nitrogen-doped multi-walled carbon nanotubes (N-MWCNTs) are a composite material formed by introducing nitrogen atoms into multi-walled carbon nanotubes (MWCNTs). This doping can significantly alter the physical and chemical properties of carbon nanotubes, giving them unique properties and application potential. Each nitrogen atom has one more electron than the carbon atom, and when the nitrogen atom replaces the carbon atom in the MWCNTs, N-type semiconductors are theoretically formed, thereby changing the electrical conductivity of the MWCNTs.
The tunneling conductivity and electron transport properties of nitrogen-doped MWCNTs are generally better than those of undoped MWCNTs.
Nitrogen doping can also increase the state density on the Fermi surface of MWCNTs, and increase the possibility of electrons entering the conduction band from the valence band, which is conducive to the improvement of field emission performance. Nitrogen doping improved the surface activity of MWCNTs, making them show higher catalytic activity and selectivity in some chemical reactions.
The introduction of nitrogen atoms may also change the way MWCNTs interact with other molecules, broadening their applications.
Technical Parameter
OD:0-80 nm
Length:.5-2 um
Purity:gt;95%
Color：Black
N Content：＞2.50wt％Ã?/span>
SSA:gt;30 m2/g
Tap density:.27g/cm3
Product Features
1. Increase of Fermi surface state density: Nitrogen doping can also increase the state density on the Fermi surface of multi-walled carbon nanotubes, and increase the possibility of electrons entering the conduction band from the valence band, which is conducive to the improvement of field emission performance.
2. Increased surface activity: The introduction of nitrogen atoms changes the surface properties of multi-walled carbon nanotubes, making them show higher catalytic activity and selectivity in some chemical reactions. This enhanced surface activity makes nitrogen-doped multi-wall carbon nanotubes have potential applications in catalysis, adsorption and other fields.
3. Good mechanical properties: Nitrogen doping may enhance the mechanical properties of multi-walled carbon nanotubes to a certain extent, such as strength and toughness, so that they can withstand greater stress and deformation without damage.
4. Improved thermal stability: Nitrogen doping may also improve the thermal stability of multi-walled carbon nanotubes, so that they can still maintain stable structure and performance at high temperatures.
Application Fields
Energy field: As a battery material, photocatalyst, etc., it has shown great application potential in energy storage and conversion.
Catalytic field: As a catalyst or catalyst carrier, it has a wide range of application prospects in chemical industry, environmental protection and other fields.
Biomedical field: It also has unique advantages in drug delivery and biosensors
Related Information
Please e-mail for the detailed characterization data.
E-mail:sales@xfnano.com
