Product Name
Name ：Rutile-type titanium dioxide
Product Overview
Titanium dioxide is a polycrystalline compound that occurs in three crystalline forms in nature: Rutile, Anatase, and Brookite. Both rutile type and anatase type belong to the tetragonal system, but have different lattices, so the X-ray diffraction image is different, the diffraction Angle (2θ) of anatase type titanium dioxide is 25.5°, and the diffraction Angle (2θ) of rutile type titanium dioxide is 27.5°. Rutile type crystals are elongated, prismatic crystals, usually twins; The anatase type generally approximates the regular octahedron. The basic unit of the constituent structure of these three crystal forms is the TiO6 octahedron, and the different phase structures mainly depend on how the TiO6 octahedron is connected. Anatase structure is composed of TiO6 octahedral common edges, while rutile and plate titanium structure is composed of TiO6 octahedral common edges. Anatase can actually be seen as an octahedral structure, while rutile and titanite are octahedral structures with slightly distorted lattices. Due to the different structure and stability of anatase, plate titanium and rutile, plate titanium and anatase are low temperature phase, rutile is high temperature phase, the first two can be converted into rutile type at more than 600 degrees.
The preparation methods of nano titanium dioxide mainly include gas phase, liquid phase and solid phase. Each type of TiO2 crystal shows different properties. Anatase and rutile type nano-titanium dioxide used in catalysts, solar energy conversion, functional ceramics, humidity and high temperature oxygen sensors, cosmetics and inorganic membranes. Anatase TiO2 is stable and has high hardness, density, dielectric constant and refractive index, so it has more important application value in advanced coatings, cosmetics and electronic ceramics.
Technical Parameter
Purity:/span>99%
Particle:0-50nm

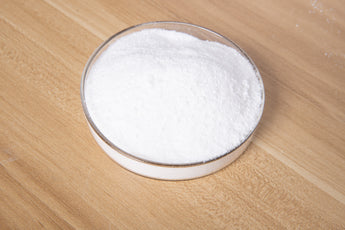

Appearance：White fluffy powder
Product Features
Photocatalytic performance: When absorbing photons of a certain wavelength, electrons in the valence band are excited to the conduction band, forming highly active holes with negative charge, so as to achieve a photocatalytic reaction.
Anti-ultraviolet ability: has a strong ability to absorb ultraviolet light, can be used for sunscreen skin care cosmetics.
Antibacterial and anti-mildew: It has good antibacterial effect, can kill bacteria, fungi and mold, and completely remove their remains and toxins in the body.
Thermal stability: Good thermal stability and chemical stability.
Photoelectric effect: Due to its wide-band gap semiconductor properties, it shows quantum limiting effect and high absorption coefficient, which is suitable for photodiodes, sensors and other photoelectric devices.
Application Fields
Environmental protection: Used for air purification, deodorization, disinfection and sterilization. For example, P25 nano titanium dioxide performs well in air purification and can effectively decompose organic pollutants in the air.
Building materials: As a coating additive, it can produce bactericidal, antifouling and self-cleaning antibacterial antifouling coatings, which can be used in bacteria-dense areas such as hospital wards, operating rooms and family bathrooms.
Energy materials: Used as raw materials for solar cells to improve photoelectric conversion efficiency.
Sensor: Used to detect a variety of gases, such as H2, CO and other flammable gases and O2, especially in the automobile exhaust sensor is widely used.
Medicine and food: as a food additive and drug carrier, it has antibacterial and antioxidant effects.
Related Information
Please e-mail for the detailed characterization data.
E-mail:sales@xfnano.com
